Penn Elcom Large Mol4 Latch In Plain Dish L944/525mol4

£10.99
Out of stock
SKU
FAV-L944/525MOL4

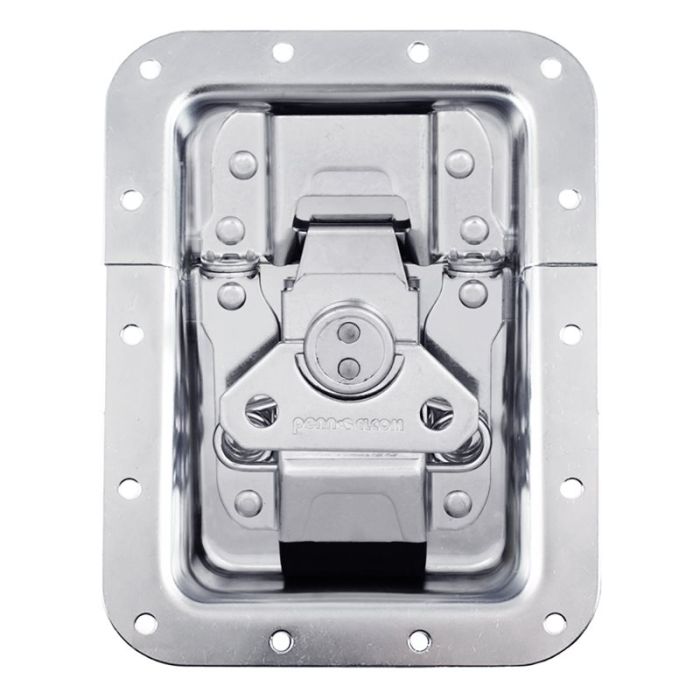

Large MOL 4 Recessed Butterfly Latch in Deep Plain Dish

From Split to Hole Centre 19mm/ 3/4"


Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a large recessed dish. For use o L944/525MOL4

Large MOL 4 Recessed Butterfly Latch in Deep Plain Dish

From Split to Hole Centre 19mm/ 3/4"


Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a large recessed dish. For use o L944/525MOL4

Large MOL4 Recessed Butterfly Latch in Deep Plain Dish

From Split to Hole Centre 19mm/ 3/4"


Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a large recessed dish. For use on large-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish.

The fixing holes are 19mm / 3/4 away from the central split of the dish making it perfect for tongue and groove edge extrusions. With a depth of only 10mm / 3/8, the shallow dish will not protrude inside the case, even when used with panels as thin as 10mm / 3/8.
Around the globe, the MOL name is synonymous with high quality and dependability. Invented in 1995, the MOL range of flight case latches revolutionised the industry and redefined standards in flight case locking.

This new generation of MOL latches is designed with a new cantilever automatic open / closes function. This new system makes locking and unlocking cases a whole lot easier, even with one hand or in the dark. The low-level T-Cam latch mechanism allows the latch to be almost completely flush even in a shallow 10mm / 3/8 deep dish.

The MOL4 comes with two integrated padlock brackets on each side of the latch: a simple and convenient solution to add an extra level of security.

Product Features?:
- With MOL4 Automatic Positioning Latch System
- Dish Width: 127mm / 5"
- Dish Height: 174mm / 6.85"
- Dish Depth: 16mm / .63"
- Offset: No
- Lockable: With Padlock Bracket
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.48kg / 1.06lb
- Maximum Working Load Capacity: 140kg / 308lb

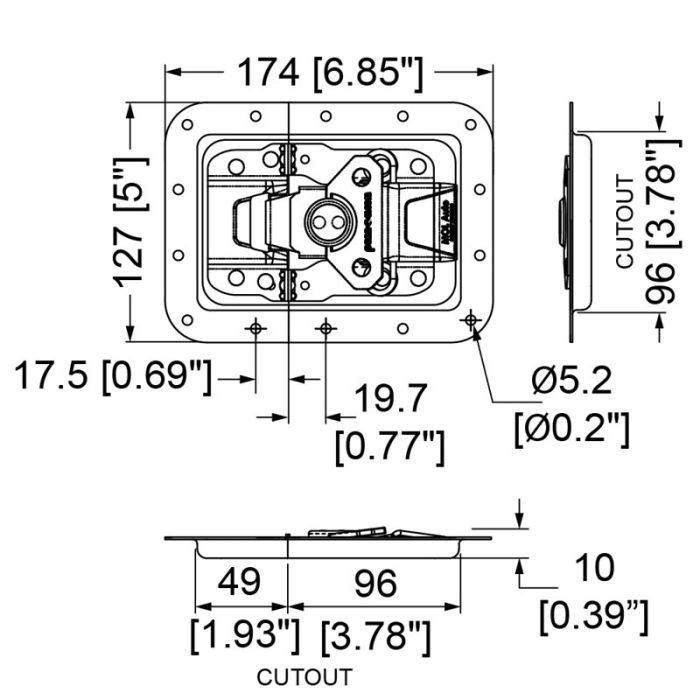

Installation Information?:
- Panel Cut-Out Size:
- Cut-Out Width: 96mm / 3 3/4
- Cut-Out Height: 96mm + 49mm / 3 3/4 + 1 15/16
- From Split to Hole Centre: 19mm / 3/4
- Mounting Holes: 14 x 5.2mm / 3/16
- Rivets Required for Installation: 14
- Suits L0526 Backplate

More Information
BrandPenn Elcom
Manfacturer CodeL944/525MOL4
