Hytronik Hc009s On-off Motion Sensor For Lighting Control

Be the first to review this product

Availability: In stock

Only 18 left

Excl. Vat: £31.39 Incl. Vat: £37.67
OR

Sensor Microwave Motion - Economy Version Wide HC009S LEDSMME By Hytronik

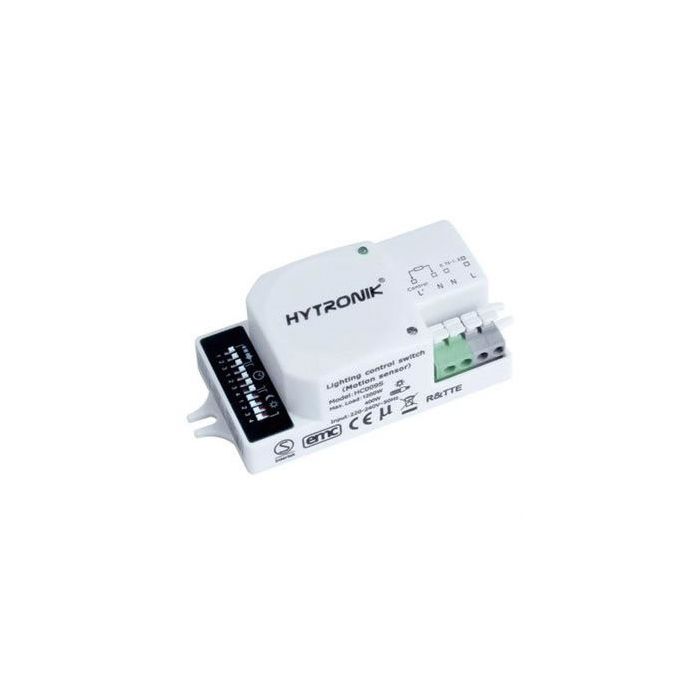

Hytronik Hc009s On-off Motion Sensor For Lighting Control

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Power Supply and Control Gear

Details

This Motion Sensor is a motion switch that turns on the light on detection of moving objects and turns it off after a pre-selected hold-time period if motion was not detected. The product also includes a built-in daylight sensor for switching off light sources when sufficient natural light is detected.

The LEDSMME is similar to the LEDSMMA (Advanced version) in terms of functions, but is the Economy version which means a lower price due to less functions available. Also the detection area, hold-time and daylight threshold steps slightly differ between the two versions.

Detection area, hold-time and daylight threshold can be customized.

Mains voltage: 220-240 V
Manufacturers Code: HC009S
Manufacturers Website: www.hytronik.com/product/on-off-motion-sensor-hc009s.html
Switched power (capacitive/inductive): Max. 400 W
Switched power (resistive): Max. 1200 W
Standby power: <0.5 W
Warmming-up time: 20 s
Detection area: 10/25/50/75/100
Hold time: 5s/30S/1min/5min/15min/30 min
Daylight threshold: 2-50 lux daylight/twilight/darkness
Microwave frequency: 5.8 GHz +/-75 MHz
Microwave power: <0.2 mW
Detection range: Max.(DxH) 12x6 m
Detection angle: 30 - 150 Deg
Mounting height: Max. 6 m
Operating temperature: -35 +70 C
Type of protection: IP20
Special box protection: IP65
Certificates: Semko, EMC, CE, R&TTE
Lifespan: 50000 h
Relay switching cycles: +100000
Warranty: 5 years

Datasheets

SEMKO CertificateDownload
Product DatasheetDownload
Test Verification (CE-LVD) of ConformityDownload
Motion sensors functionsDownload
