Hybrid Power, Data , Signal Cable 2 X Cat5e ,2x Aes Ebu

First-Av.co.uk Power, Data & Signal. 3x1.5mm Mains - 2x CAT5e Data & 2x Signal110 Ohm AES EBU 7YPW3LN2GD2 CASC5DP15

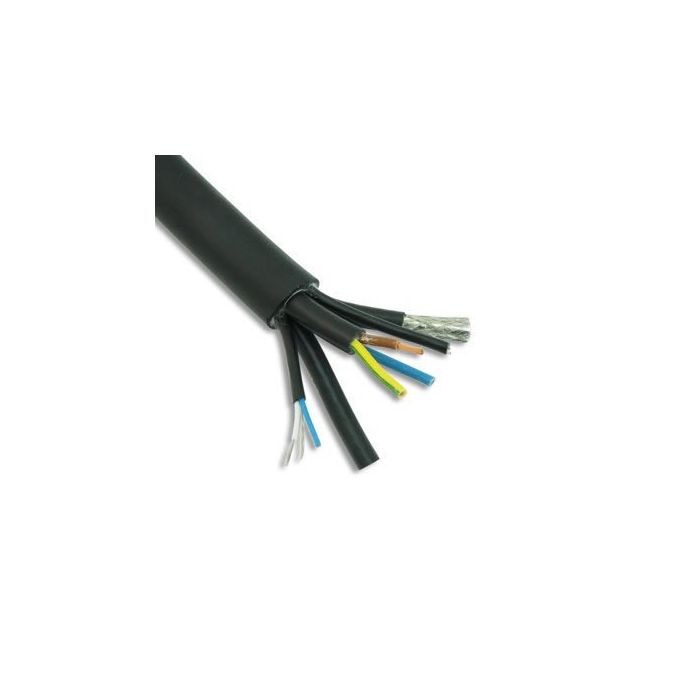

HYBRID MAINS POWER Power, Data & Signal Cable. 3x1.5mm Mains - 2x CAT5e Data & 2x 110 Ohm AES EBU Signal for Audio or Lighting Applications. 2 x CAT5E Conductors: Solid bare OFC Dia=0,51mm - 24 AWG Conductors jacket: Polyolefin Foam - Dia=0,95 mm Color code: Comply EIA/TIA 568 First screen: aluminium-mylar foil 100% cov. Second screen: tinned copper braid cov. >80% Resistance of conductors: < 90 O/Km Insulation resistance: > 10.000 O/Km Capacity between conductors: 51 nF/Km Impedance from 1 to 100MHz: 100 O Jacket: Black PVC Dia 6,4 mm flame-retardant 1 x POWER Conductors: stranded OFC 3 x 1.5 mmSq - 15 AWG Conductors jacket: Brown, Blue, Green-Yellow PVC External jacket: Black PVC Dia 6,4 mm flame-retardant 2 x DIGITAL Conductors: tinned OFC 24 AWG - 28 x 0,10mm Conductors jacket: white/blue gas injected foam Dia 1,4mm Drain wire: tinned OFC 24 AWG - 7 x 0,18mm Screen: aluminium/mylar foil 100% cov. Nominal Impedence: 1-4 Mhz 110 O/100 mt External jacket: Black PVC flame-retardant Dia 3,4mm D.C.R. conductors: <86 O/Km D.C.R. shield: <70 O/Km Capacitance cond./cond.: 1Khz 37 nF/Km Capacitance cond./shield: 1Khz 57 nF/Km --------------------------------------------------------------------------------------------------- Overall jacket: matt Black PVC flame-retardant Dia=19,6 mm
