Neutrik EtherCON CAT6 D-shape Chassis NE8FDY-C6 CONE8FDYC6

EtherCON CAT6 D-shape Chassis

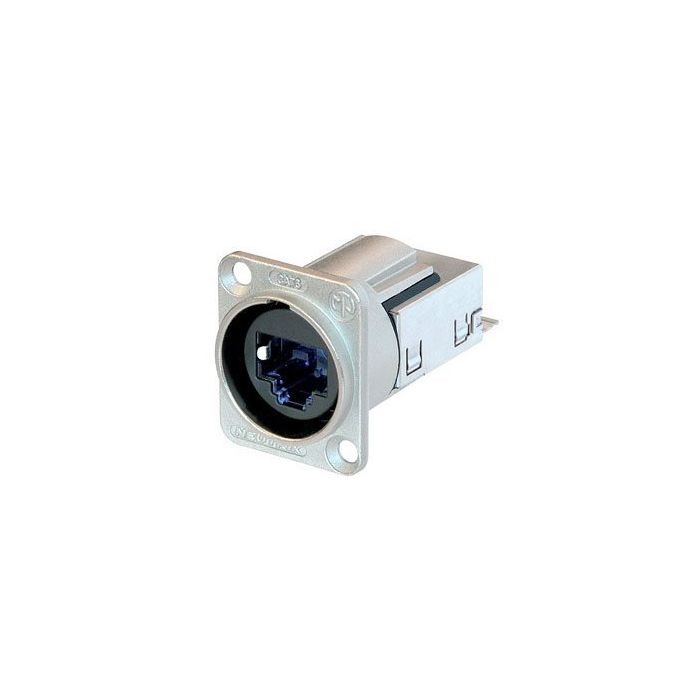

D-shape CAT6 panel connector with Nickel housing
The EtherCon CAT6 D-shape panel connectors with metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.

Technical Specifications:

- Connector Type: RJ45
- Shell plating: Nickel
- Dielectric strength: 1 kVdc
- Frequency range: 1 - 250 MHz
- Rated current per contact: 1.5 A
- Rated voltage: 50 V
- Wire size: 24 - 22 AWG
- Wiring: IDC punch down terminals
- Chassis shape: unified D
- CAT6 compliant: data rate up to 10 GBit/s
- CAT6 specifications according: TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65: Dust and waterproof in mated condition
- Shielded system: high noise immunity and EMI protection
- Push Pull mating: secure and proven locking system

Priced per connector: available in any quantity
Packing information: Box quantity = 50
