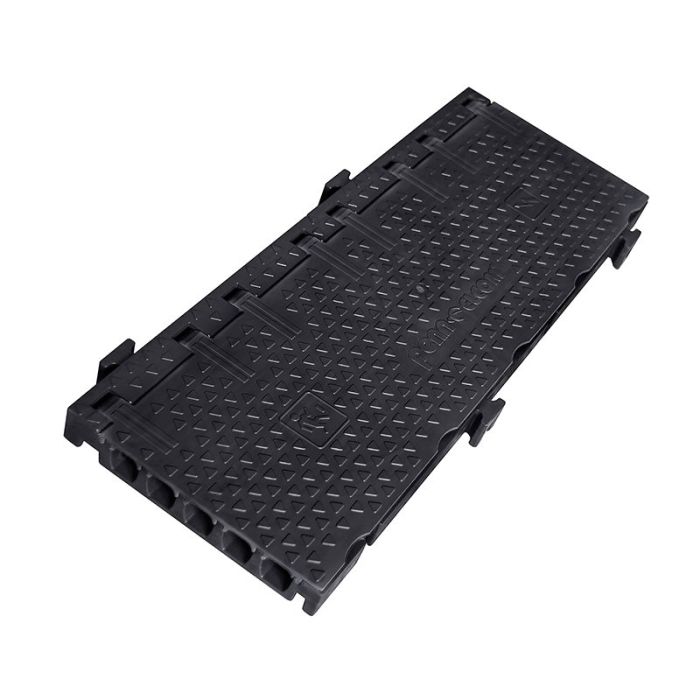

Cross 5 Base Section Black Cross5k

Forged from high quality thermoplastic polyurethane (TPU), CROSS 5 is a five channel crossover system that gives you unrivalled strength, abrasion resistance and flexibility, with NEW fire retardant technology.
Its ingenious design enables a wide variety of crossover combinations, whatever your cable management needs. The two elements that enable this system are the base section and the ramp section.

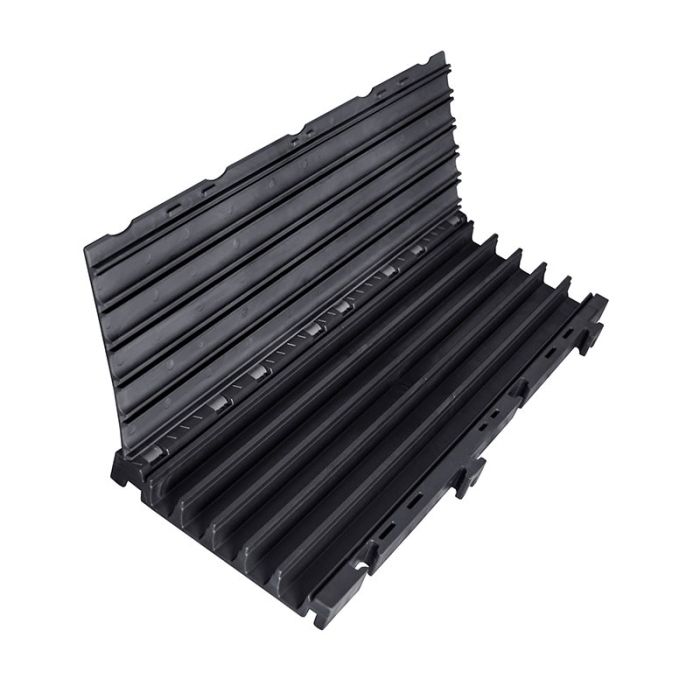

BASE SECTION: The base sections acts as a connector piece, from which many combinations of cross over systems can be created.

RAMP SECTION: The ramp section has a 15Deg angle of inclination, the optimal angle for vehicles to drive over.

KEY FEATURES:
Highly tear-proof and high form stability.
Indented channel ridges to prevent the lid bowing under pressure.
Resistant to most oils, fats and chemicals.
Fire retardant (DIN EN 13501-1).
Can withstand 5 tonnes of direct pressure.
Coloured lids can be changed.
Fixed lid in drive over position.
Quick and easy assembly.


DIMENSIONS:
Base Section
Length: 1000mm / 39.7"
Width: 370mm / 14.57"
Width of x2 base pieces side by side: 800mm / 31.5"
Height: 58mm / 2.28"
Weight: 12kg/26.46lb
Cable channels: width 40mm / 1.57", height 44mm / 1.73"

Ramp Section
Length: 1000mm / 39.7"
Width: 230mm / 9.06"
Height: 50mm / 1.97"
Weight: 5kg/11.02lb
Incline angle: 15Deg

Wheelchair Section
Length: 1000mm / 39.7"
Width: 1200mm / 47"
Height: 62mm / 2.44"
Incline angle: 3.4Deg / 6%
