2m Ledal03 Kit For 10mm Corner Aluminium Profile Ledal03m2

Penn Elcom 2M LEDAL03 KIT for 10mm Corner Aluminium Profile LEDAL03M2 LEDAL03M2

New aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL03A2M - 2M anodized aluminium extrusion
LEDAL03MC2M - 2M white milky cover
LEDAL03EC - End Cap without hole
LEDAL03ECH - End Cap with hole for cable entry
LEDAL03MB - 4 x mounting brackets

Features:

+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 10 mm

Advantages:

+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty

Application area:

+ Edge lighting
+ Strip lighting
+ Cove lighting
+ Anywhere LED Flex or an LED module needs extra support

Other options/accessories available:

LEDAL03B - 1M Black version
LEDAL03W - 1M White version
LEDAL03 - 1M anodized version (grey)
Suitable for the Flex strips not over 10 mm
Height: 16 mm
Length: 2000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 10 mm
Base thickness: 0.8 mm
Cover material: PC
Commodity Code: 7604299090

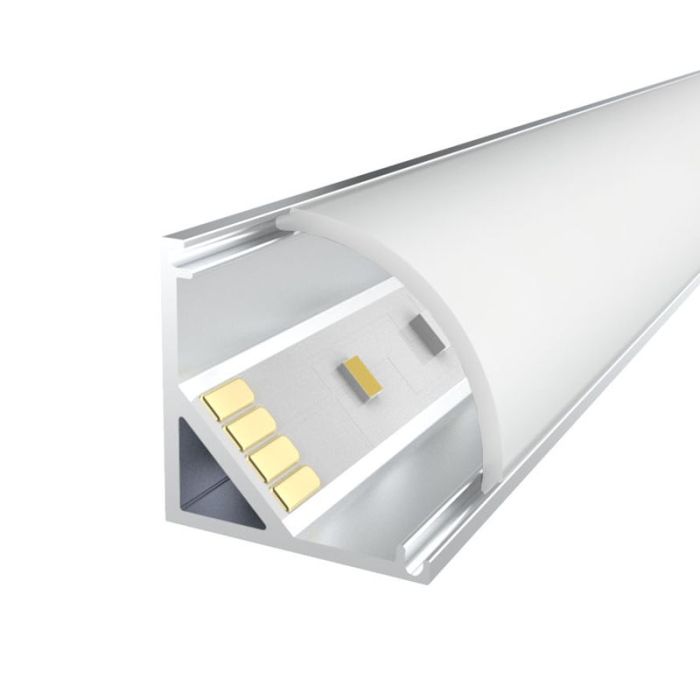

LED shown in images for illustration purposes and is not included in profile
