20a Rack Mount Pdu Universal Sockets Pdu16-av

Be the first to review this product

Availability: In stock

Only 20 left

Excl. Vat: £142.76 Incl. Vat: £171.31
OR

20A Rack Mount PDU Universal Sockets PDU16-AV PDU16-AV By Penn Elcom

20a Rack Mount Pdu Universal Sockets Pdu16-av

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
19 Inch Rack

Details

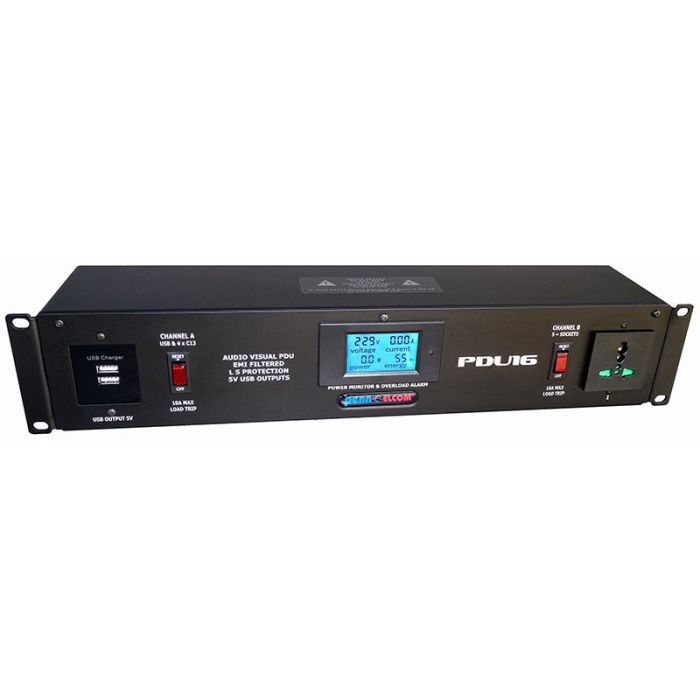

2U 20 Amp Rack Mount PDU with Overload Protection & Power Monitoring
?
2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution
of AC power within Audio Visual & Multimedia applications.
?
Main Input - Neutrik 20A powerCON with 2nd order EMI filter & GDT/VDR protection circuit against Lightning Strike & Local Power Surge
?
Circuit A:
?
Protection - Illuminated Circuit Breaker 10A overload protection
Output - 4 Way IEC C13 Outlet Strip with max combined load of 10A 2 Dual USB 5V 1.8A charger modules
?
Circuit B:
?
Output - 5 Universal sockets useable with plugs from the UK, US, Europe and Australia, with a maximum Combined Load 10A. (Schuko type plugs have a 2 pin connection only) For full universal plug application guide see appendix A
Protection - Illuminated Circuit Breaker 10A overload protection
LCD Monitor - LCD Power Monitor giving Voltage, Current , Power & Energy Levels.
Earth Link - M4 Screw Terminal for Rack Grounding
?
Usage:
?
Nominal Voltage: 230V
Usable Voltages 240V full range
Frequency: 50/60HZ full range
Max. A/C Output: Current 20A
Case Size: 87 x 98 x 430mm (O.A.483mm) / 3.4in x 3.85in x 16.92in
Weight: 2.5kg (5.5lbs)
?
Compliance All components used in this conform to current RoHS, CE & UL certification - E&OE
(EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
?

Datasheets

?
Product Datasheet Download

?

Datasheets

?
Product User Guide Download

Additional Information

SKU FAV-PDU16-AV
Barcode No
Manufacturer Penn Elcom
Manfacturer Code PDU16-AV
