1u 19 Inch Rack Iec And Dc Power Distribution With Surge Protection

Be the first to review this product

Availability: In stock

Only 2 left

Excl. Vat: £185.41 Incl. Vat: £222.49
OR

1U Rack Mounting PDU with Surge Protection & EMI Filter PDU01-14 PDU01-14 By First-Av.co.uk

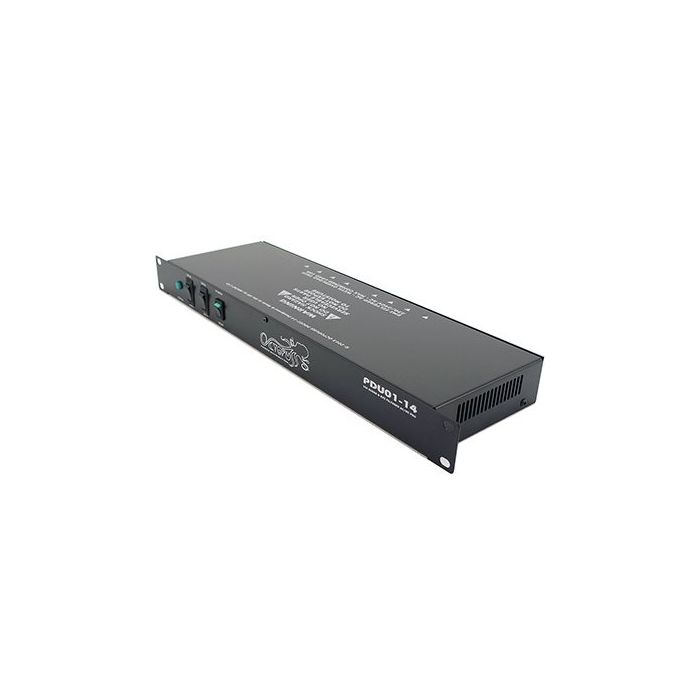

1u 19 Inch Rack Iec And Dc Power Distribution With Surge Protection

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
19 Inch Rack

Details

1U high Horizontal Mounting Unit is designed to provide a versatile hook-up for the distribution of AC & DC power within multimedia racking applications. All components used in this unit conform to current RoHS, CE & UL certification.

Input: C14 fused EMI filtered input with additional protection against power surge.
Output AC: 8 x IEC320 C13
Protection: 2 x 10 Amp Circuit Breakers
DC PSU: Switchable Isolated DC supply
Output DC: 12 Way pluggable screw terminal socket. 3 x 5V dc max load 2100mA. 3 x 12V dc max load 1200mA.
Earth Link: M4 Screw Terminal for rack grounding.
Nominal voltage: 230V
Usable Voltages: 200V - 240V
Frequency: 50/60HZ
Max. A/C Output: Current 20A
Case Size: 45mm x 140mm x 430mm
Weight: 3.5KG

Datasheets

PDU01-14 USER GUIDEDownload
PDU01_14 RackzDownload

Additional Information

SKU FAV-PDU01-14
Barcode N/A
Manufacturer First-Av.co.uk
Manfacturer Code PDU01-14
