1m Kit 29.7mm Wide Corner/suspended Profile With L Cover Ledal41

Be the first to review this product

Availability: In stock

Excl. Vat: £8.05 Incl. Vat: £9.66
OR

1m Kit 29.7mm wide Corner/Suspended Profile with L Cover LEDAL41 LEDAL41 By First-AV.co.uk

1m Kit 29.7mm Wide Corner/suspended Profile With L Cover Ledal41

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Related links:
LED Profile Accessories

Details

First-AV.co.uk 1m Kit 29.7mm wide Corner/Suspended Profile with L Cover LEDAL41 LEDAL41

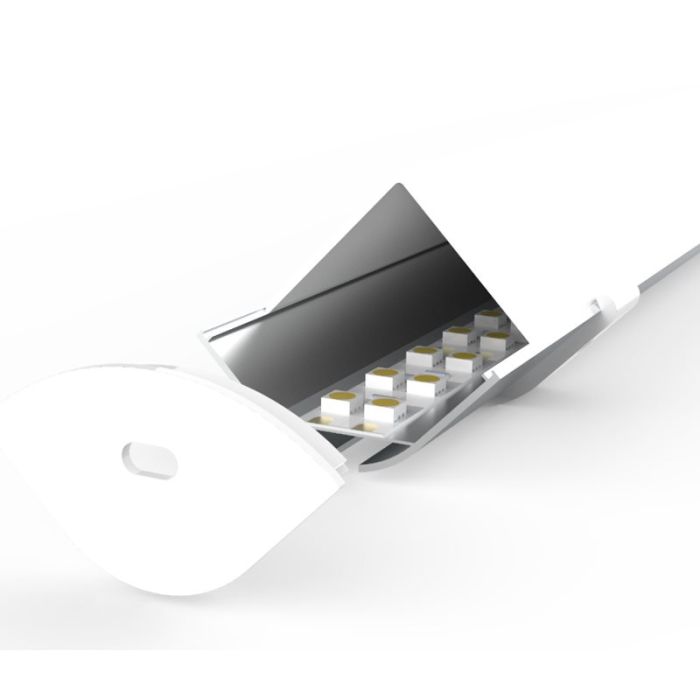

Corner aluminium extrusion suitable for LED strips not wider than 20mm or 2x 10mm. Can be surface mounted or suspended.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL41A1M - 1M anodized aluminium extrusion
LEDAL41MC1M - 1M opal L shaped cover
LEDAL41EC - 1x White End Cap without hole
LEDAL41EC - 1x White End Cap with hole for cable entry
LEDAL41MB - 2x Polycarbonate Bracket for surface mounting

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 20 mm

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Kitchen lighting;
Strip lighting;
Suspended lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL41B - Black version
LEDAL41W - White version
LEDAL41M2 - 2M anodized version (grey)
LEDAL41M3 - 3M anodized version (grey)
LEDALSWTYPEC - Pair of suspension Wires

Specifications:

Height: 29.7 mm
Length: 1000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (External): 29.7 mm
Width (Internal): 20.55 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Clip in

Additional Information

SKU FAV-LEDAL41
Barcode N/A
Manufacturer First-AV.co.uk
Manfacturer Code LEDAL41
Series N/A
