1m Kit 21mm Ceiling Light Aluminium Profile Ledal09

Penn Elcom 1m kit 21mm Ceiling Light Aluminium Profile LEDAL09 LEDAL09

New aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT

LEDAL09A1M - 1M anodized aluminium extrusion
LEDAL09DC1M - 1M diffuse cover
LEDAL09EC - End Cap without hole for cable entry
LEDAL09ECH - End Cap with hole

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 21 mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other options/accessories available:

LEDAL09B - 1M Black version
LEDAL09W - 1M White version
LEDAL09M2 - 2M anodized version (grey)
LEDAL09SC - Suspension cable (pair)

Suitable for the Flex strips not over 21 mm or for 2 x 10 mm.

Height: 30 mm
Cover diameter: 28 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 21 mm
Base thickness: 1.1 mm
Cover material: PC

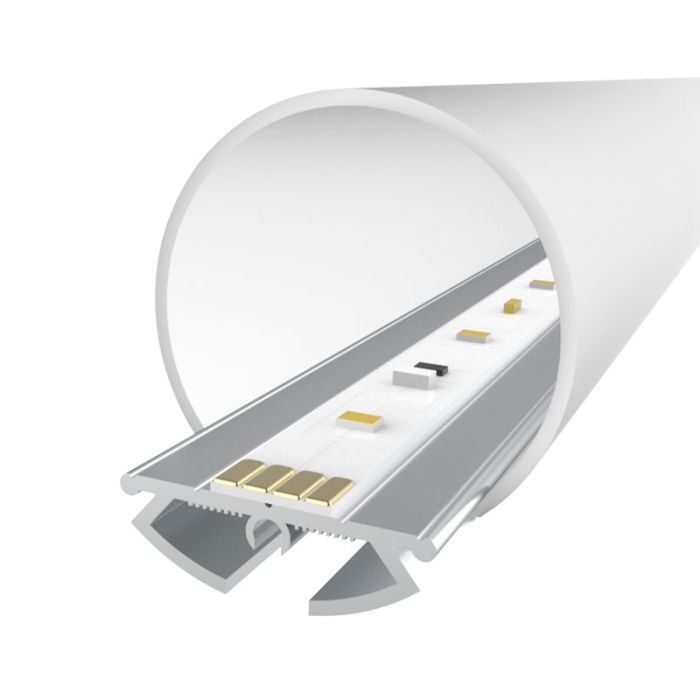

LED shown in images for illustration purposes and is not included in profile
